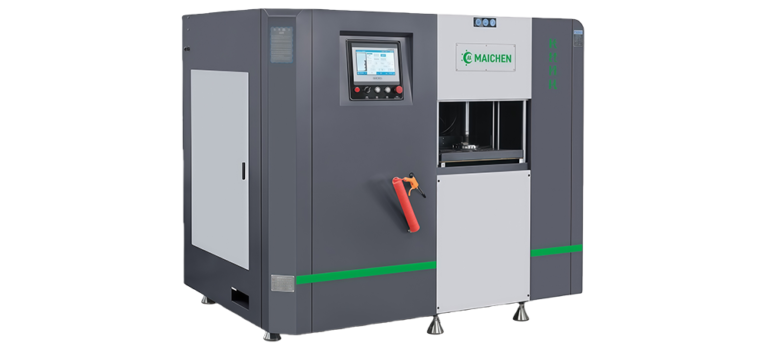

Heavy-Duty Automatic End Face Milling Machine

Heavy-Duty Automatic End Face Milling Machine

Heavy-Duty Automatic End Face Milling Machine

This aluminum profile heavy-duty automatic end milling machine is designed for efficient end-face processing of aluminum profiles. It can process 2–6 profiles simultaneously, with vertically and horizontally adjustable cutting tools and speed control to adapt to different shapes and connections.
share：

Heavy-Duty Automatic End Face Milling Machine

This aluminum profile heavy-duty automatic end milling machine is designed for efficient end-face processing of aluminum profiles. It can process 2–6 profiles simultaneously, with vertically and horizontally adjustable cutting tools and speed control to adapt to different shapes and connections.
share：
I. Technical Specifications
Item Specification Item Specification
Power Supply Voltage 380V/50Hz Input Power 2×2.2 Kw
Working Air Pressure 0.5-0.8 Mpa Air Consumption 200L/Min
Motor Speed 2800r/min Saw Blade Diameter φ250 mm
Adjustment Stroke 0-160mm
Overall Dimensions 2000×1000×1600mm
II. Equipment Performance
  • Designed for end face processing of aluminum profiles to accommodate different profile connections. Capable of processing 2-6 profiles simultaneously with high efficiency.
  • Cutting tools can be adjusted vertically and horizontally with speed regulation to adapt to different shapes and sizes.
  • Adjustable cutting tools eliminate the need for custom tools when processing different profiles, thereby reducing production preparation time, cycle time, and costs.
