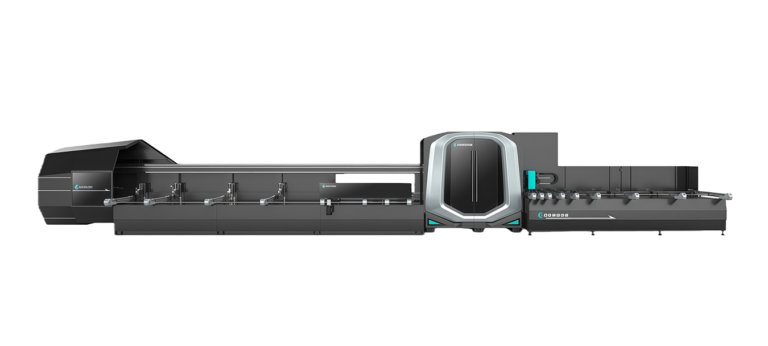

The M550 series intelligent sawing & milling machining center integrates multiple processes, features a 13-axis configuration, boasts a stable, deformation-resistant cast design, offers multi-angle cutting and continuous feeding, includes automatic error correction, and is compatible with mainstream door and window software.
share：
Intelligent Sawing & Milling Machining Center
The M550 series intelligent sawing & milling machining center integrates multiple processes, features a 13-axis configuration, boasts a stable, deformation-resistant cast design, offers multi-angle cutting and continuous feeding, includes automatic error correction, and is compatible with mainstream door and window software.
share：
Main Technical Parameters
| Parameter | Specification |
| Overall Dimensions (L*W*H) | 17000mm * 3500mm * 2800mm (excluding chip conveyor dimensions) |
| Chip Conveyor Dimensions (L*W*H) | Approx. 3150mm * 500mm * 700mm |
| Total Weight | Approx. 8.5 tons |
| Input Power Supply | 380V / 50HZ, three-phase four-wire system |
| Working Air Pressure | 0.8 MPA |
| Total Power | 40 KW |
| Sawing Speed | 15–50 m/min |
| Raw Material Length | 1200 ≤ L ≤ 6600 mm |
| Sawing Length | ≥ 290 mm |
| Feeding Table Capacity | 8 + 1 pieces (cyclic feeding) |
| Saw Blade Diameter | Φ550 |
| Sawing Angles | 45°, –45°, 90°, combinable as required |
| Sawing Method | 2 lower-out type, 1 horizontal-push type |
| Profile Processing Range | Height: 130 mm, Width: 130 mm |
| Drilling Method | Two rear-out, one upper-out, one lower-out, one front-out |
| Laser Marking Method | Front/rear approximate alignment |
Equipment Introduction & Advantages
This machine is an intelligent sawing & milling machining center integrating drilling, slot milling, cutting, corner protection, laser marking, and label printing.
- Equipped with 13 axes and 3 sets of dedicated feed cutting methods. The front, rear, upper, and lower sides have 5 sets of spindle milling holes. The right side has two aligned laser marking devices. Capable of processing corner brace holes, glue injection holes, lock holes, lock boxes, handle holes, mounting holes, hardware notches, corner protection cuts, laser mullion marking, automatic labeling, etc.
- Capable of 45° cutting, mixed 45°/90° cutting, corner protection cutting, and automatic label printing. The robotic arm features three-axis CNC adjustable and memorizable positioning. Cyclic feeding platform enables continuous workflow with automatic scrap recycling. Equipped with dual monitoring for safer operation via screen observation.
- The overall structure uses thickened square tubes welded together, followed by sandblasting and shot peening to eliminate internal stress. The gantry is processed in one pass for higher precision.
- The machine base and main components adopt cast integrated technology, machined via CNC machining centers for milling and drilling/tapping, resulting in minimal deformation and higher stability.
- Major components and systems use renowned brands to ensure long-term operational data processing and durability. Industrial exterior sheet metal design with fully enclosed housing, both aesthetic and safe.
- Compatible with mainstream door/window software; processing can begin immediately after data transfer.
Major Advantages
- Cast Integrated Body— Resistant to deformation, higher stability.
- Fixed Angle— Dedicated cutting feed method, zero angle error.
- Ultra-Short Material Processing— Supports raw material as short as 1.2 meters, preventing material waste.
- Tool Travel Milling Method— Material is clamped during hole/slot milling while the milling cutter moves, avoiding robotic arm movement errors caused by milling resistance.
- Material Auto-Correction— System alerts when material is placed incorrectly, preventing processing errors.
- Integrated Printing System— Built-in printer with more comprehensive display content.
- Extended Warranty for Machined Parts.
